Hi-Dispenser

Automatic microplate reagent dispenser

High-throughput liquid dispenser

Accelerate your processes by combining precision and reliability

The Hi-Dispenser is a high-throughput liquid dispenser specifically designed to automatically fill microplates, reservoirs, or microtubes. It is available in 3 sizes—M, L, and XL—to suit your required capacities. Capable of dispensing reagents in seconds, it is ideal for accelerating kit production or performing biochemical, chemical, or biological tests. Its intuitive user interface simplifies setup and programming, making the Hi-Dispenser extremely easy to use while delivering unmatched performance.

Distributeur automatique de réactifs bleu avec écran tactile surmonté, système de distribution à plusieurs canaux au centre, supports pour microplaques en dessous, et rangée de réactifs sur la gauche.

Gros plan d'un composant électronique bleu avec des broches ou connecteurs métalliques alignés, éclairé par une lumière violette.

Compact dispenser

Customizable and adaptable to your needs

Compact and customizable, the Hi-Dispenser adapts perfectly to the specific needs of any laboratory. It offers maximum flexibility with a choice of several dispensing systems, such as peristaltic pumps and single or multi-channel syringes.

This dispenser can handle up to two channels simultaneously and is equipped with advanced features like automatic plate detection and ultrasonic volume control, ensuring optimal traceability and safety.

Integration and safety

Designed for safe and efficient use

The Hi-Dispenser is fully compatible with robotic systems thanks to its integrated API, facilitating seamless integration into automated laboratory workflows.

Additionally, it is equipped with safety features such as an emergency stop button, LED protection, and ultrasonic volume control, ensuring reliable and secure operation in demanding production environments.

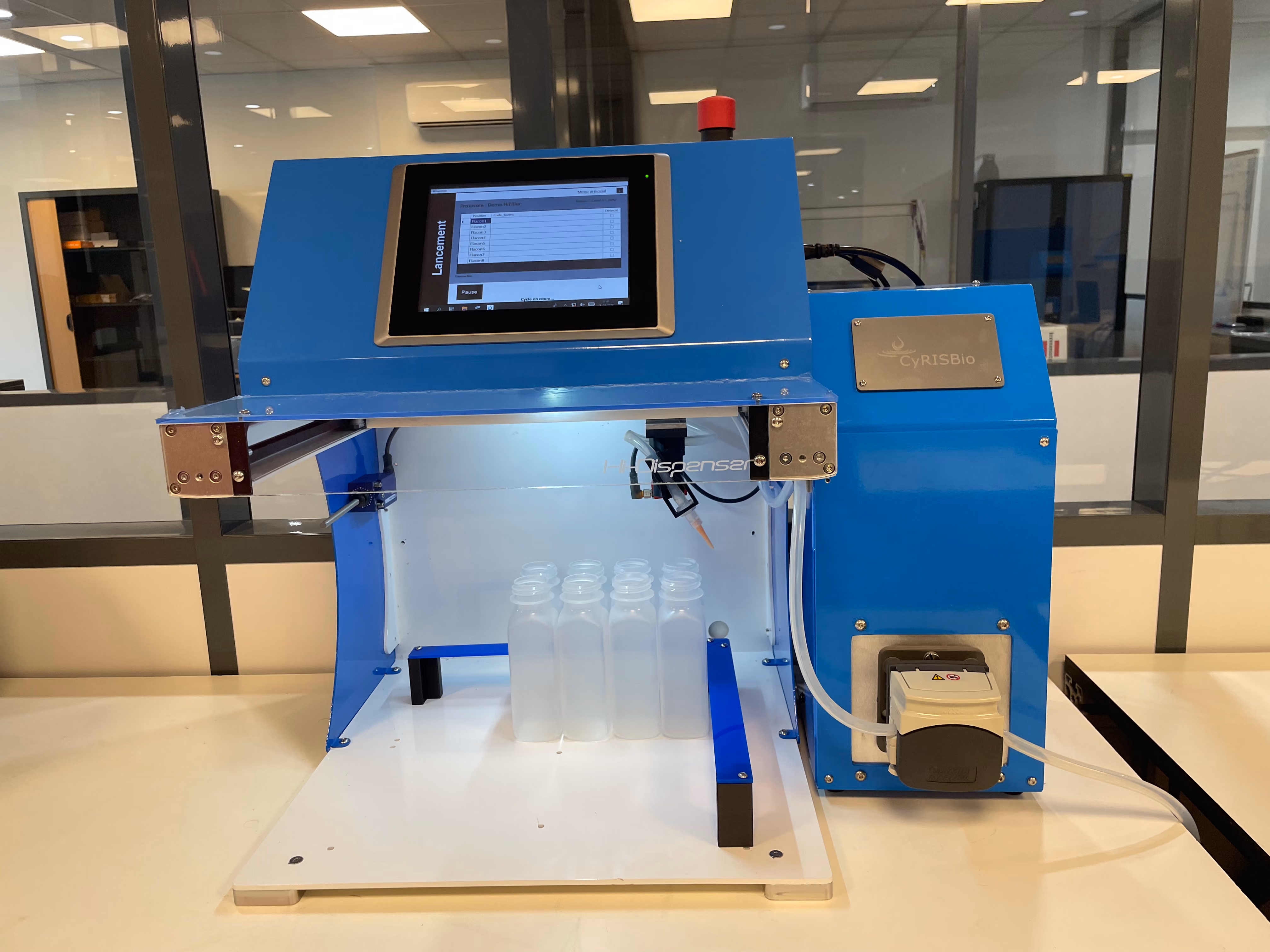

Distributeur automatique de liquide bleu et blanc sur un bureau, équipé d'un écran tactile affichant un menu de lancement, avec plusieurs bouteilles transparentes placées sous la buse de distribution.

The Hi-Dispenser is designed to offer maximum flexibility for various laboratory applications, featuring advanced technical specifications that ensure reliable and precise performance.

Volume Capacity : From 5µL to 2000µL per well, suitable for various microplate formats, including 6, 12, 24, 48, 96, and 384-well plates as well as microtubes.
Speed : Capable of filling 4 microplates in under 4 minutes, accelerating testing and production processes.
Precision: For a water volume of 20 uL, the CV is <3% (5 mL syringe)
Safety : The HIDispenser is equipped with LED safety guards, an emergency stop button, and an optional ultrasonic volume control system, ensuring safe and efficient operation.
Integration : Easily integrated into robotic systems thanks to its API compatibility, allowing for complete automation of dispensing processes.
Integrated Quality Control : The system includes advanced quality control features, such as automatic plate detection and microplate traceability via barcode reading.
Production Management : The HIDispenser allows for precise production monitoring, reducing errors and improving overall result quality.
Graphical User Interface (GUI) : The HIDispenser's intuitive software, featuring a graphical interface, simplifies setup and programming, making the device accessible even to novice users.
Robotic Compatibility : Designed for easy integration into robotic systems, the HIDispenser is "robot-friendly," enabling seamless automation in complex production environments.

HIDispenser Size M

HIDispenser Size M + 1 8-Channel Diluter Module :

This compact model is ideal for laboratories with limited space. It offers precise dispensing while integrating easily into the workspace.

HIDispenser Size L

HIDispenser L with 1 peristaltic pump module and 1 8-syringe module:

Designed for applications requiring both precise low-volume dispensing and rapid bulk filling, this model combines the advantages of syringes and peristaltic pumps.

HIDispenser XL size

HIDispenser XL version with 2 multi-syringe modules:

This wider version accommodates a 14-position microplate tray, providing increased capacity for high-throughput laboratories.

‍

Distributeur liquide avec plusieurs têtes interchangeables en métal et plastique, équipé de plusieurs tubes jaunes connectés à un système de distribution, sur un fond vert et un bureau blanc.

The HIDispenser offers a range of interchangeable dispensing heads to meet your specific needs. Currently, the HIDispenser uses a head with 2 possible dispensing channels, allowing for great flexibility in laboratory applications.

Possible needle count combinations:

Tableau montrant deux lignes nommées Canal 1 et Canal 2 avec les valeurs numériques : Canal 1 - 1, 1, 1, 1, 1, 4, 6, 8, 12 ; Canal 2 - 1, 4, 6, 8, 12, 4, 6, 8, 12.

These options allow the HIDispenser to be adapted to various dispensing configurations, depending on the specific requirements of the tests and the volumes to be processed. Whether you need ultra-precise single-channel dispensing or faster bulk dispensing, the HIDispenser easily adjusts to provide the ideal solution.

‍

The HIDispenser offers a range of advanced and innovative options to meet specific laboratory requirements while ensuring maximum flexibility:

Traceability (optional) : The HIDispenser offers full traceability with the option to add automatic rack barcode reading. Data can be exported, including the rack barcode, dispensing date and time, device number, as well as detected height and volume verification (optional).
Innovative ultrasonic sensor control system : Precise control of liquid dispensing is ensured by ultrasonic sensors, allowing for graphical volume management, quality control of expected volumes, and microplate presence detection.
Volume verification (optional) : The HIDispenser can be equipped with an ultrasonic volume verification feature, ensuring that dispensed volumes meet expectations, which is essential for maintaining test quality and precision.
Robotic compatibility : The HIDispenser is designed for easy integration with robotic platforms, including a robotic fluid arm. It is compact, fast (10-second loading time), and reliable. Additional options, such as a lid holder for tip management and a barcode reader, can be added to optimize performance in automated environments.

The HIDispenser is designed for a wide range of laboratory applications, offering the flexibility and precision to meet the needs of various industries:

Test Kit Production : Accelerate reagent filling for large-scale kit production with unparalleled precision. The HIDispenser allows for the rapid processing of large volumes while maintaining the quality and reproducibility of results.
Biochemical and Biological Testing : Ensure precise reagent dispensing for biochemical and biological tests, guaranteeing reliable and consistent results that are essential for high-precision research.
Analytical Chemistry : Adapted to the requirements of analytical chemistry testing, the HIDispenser offers flexibility in reagent dispensing, allowing complex analyses to be performed with high accuracy.
Life Science Research : Whether for cell culture, toxicity testing, or genomics research, the HIDispenser adapts to the specific needs of life science laboratories, thereby improving the efficiency of experimental processes.

Interface utilisateur logicielle pour la position de racks dans l'automatisation de laboratoire, montrant quatre sections de racks avec des champs pour profondeur et horizontal, boutons de sauvegarde, options d'ajustement de position en mm, et contrôles directionnels.

‍

The HIDispenser is equipped with powerful, intuitive software that facilitates laboratory operation and task management:

Graphical User Interface (GUI) : The HIDispenser software features a user-friendly graphical interface that simplifies task configuration and programming. Users can easily navigate and adjust settings to meet the specific needs of each application.
Assay Manager : An integrated protocol manager that allows you to program complex tasks, track test progress in real time, and ensure result quality. The Assay Manager centralizes data and facilitates process automation.
Master/Client Mode : Enables simultaneous management of multiple HIDispensers from a single interface, ideal for large-scale production environments. This mode allows for smooth and efficient coordination between multiple units, optimizing laboratory operations.
